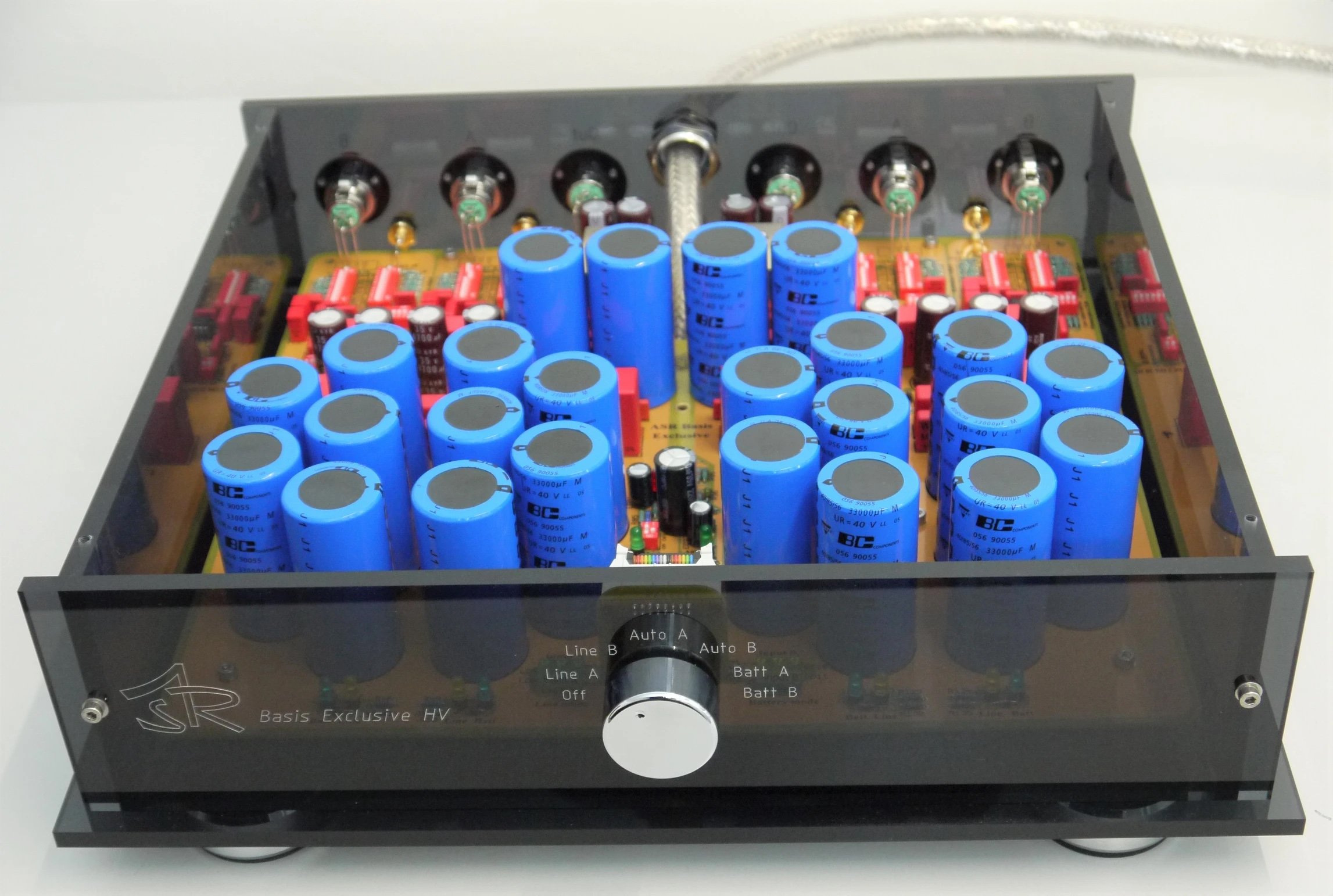

ASR Basis Exclusive HV PHONO STAGE

The ASR Basis Exclusive is one of the most complex phono pre-amps on the market and its complexity exceeds many a power amplifier.

A total sieve capacity of 1,300,000 uF and an external battery pack ensure an extremely stable and clean power supply.

The Basis Exclusive is equipped with symmetrical XLR inputs in addition to the usual asymmetrical cynch sockets, because pickups are symmetrical sources in terms of their working principle. You can operate this optimally on the ASR Basis Exclusive.

The output is also equipped with cynch and balanced XLR connections. The two inputs have two separate input stages and can be set independently of one another. A signal-controlled automatic system switches the main unit to battery operation.

The ASR Basis Exclusive is also equipped with high-speed operational amplifiers as standard. This gives the Basis Exclusive a hitherto hardly heard bass foundation, a precise resolution of all the finest information, with a particularly stable spatial image.

• Signal-to-noise ratio: MC better than 68 dB, depending on the setting.

• Frequency response: - 3 dB from 3 Hz to 200,000 Hz

• RIAA equalization accuracy better than 0.5 dB from 20-20,000 Hz.

• Distortion: from 5 mV to 5 V AC at 100 R at 1 kHz <0.001, from 20-20,000 Hz <0.005%

• Input resistance: Phono MM and MC 5 Ohm to 47 KOhm

• Input capacitance: between 100 pF and 320 pF

• Housing made of low-resonance, slightly transparent acrylic glass.

• Mains cable ASR Magic Cord 150 cm, other lengths on customer request.

• The IC's heat sinks are made of solid brass for low resonance.

• Font in chrome or gold can be selected.

• Optional: Cynch sockets from WBT next gen made of copper or silver.

• Optional: only one input for pickups.

• 40 volt ASR electrolytic capacitors.

• Cynch sockets from WBT next gen made of copper or silver.

• 43 cm width 37 cm depth 14 cm height

• Weight 28 kg.

ASR Basis Exclusive HV
